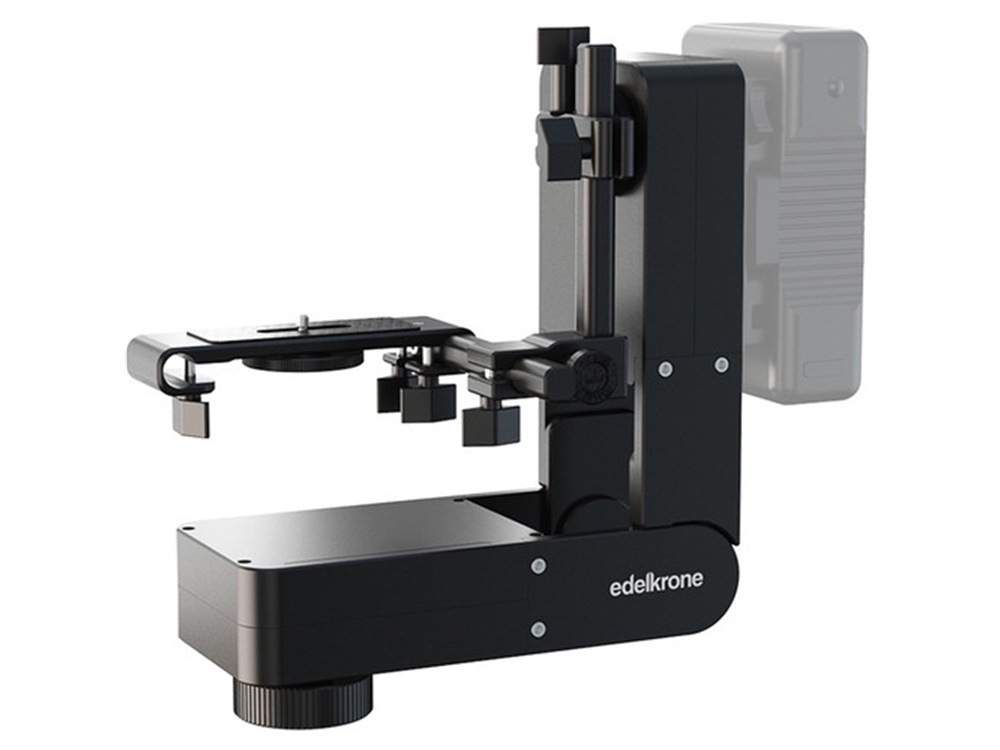

Smooth Automatic Pan and Tilt Head
9kg/20 lb Maximum Load
Use on Tripod or SliderPLUS PRO
Manual or Smartphone App Control

Upgrade your shots with smooth, precise motion using the HeadPLUS PRO Pan and Tilt Head from edelkrone. The sturdy aluminum and steelhead support a maximum equipment load of 9kg/20 lb. It can be mounted onto a tripod with a 3/8"-16 screw or used with the SliderPLUS PRO with Slide Module for smooth pan/tilt-sliding shots.

The head can be precisely controlled via the edelkrone smartphone app or it can be moved manually. When mounted on the SliderPLUS PRO, you can track objects automatically to produce dramatic motion shots such as parallax effects. The head can also be programmed for time-lapse or special effects shots by recording motions and repeating them.

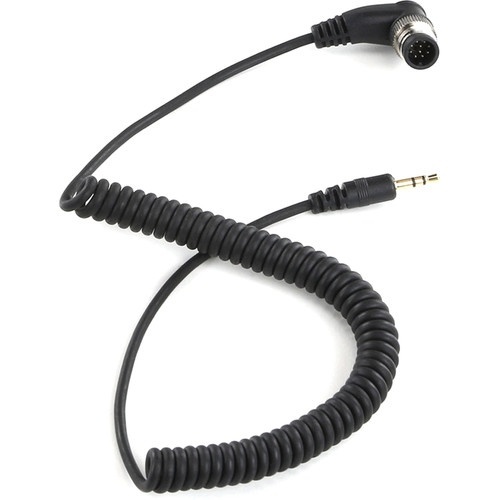

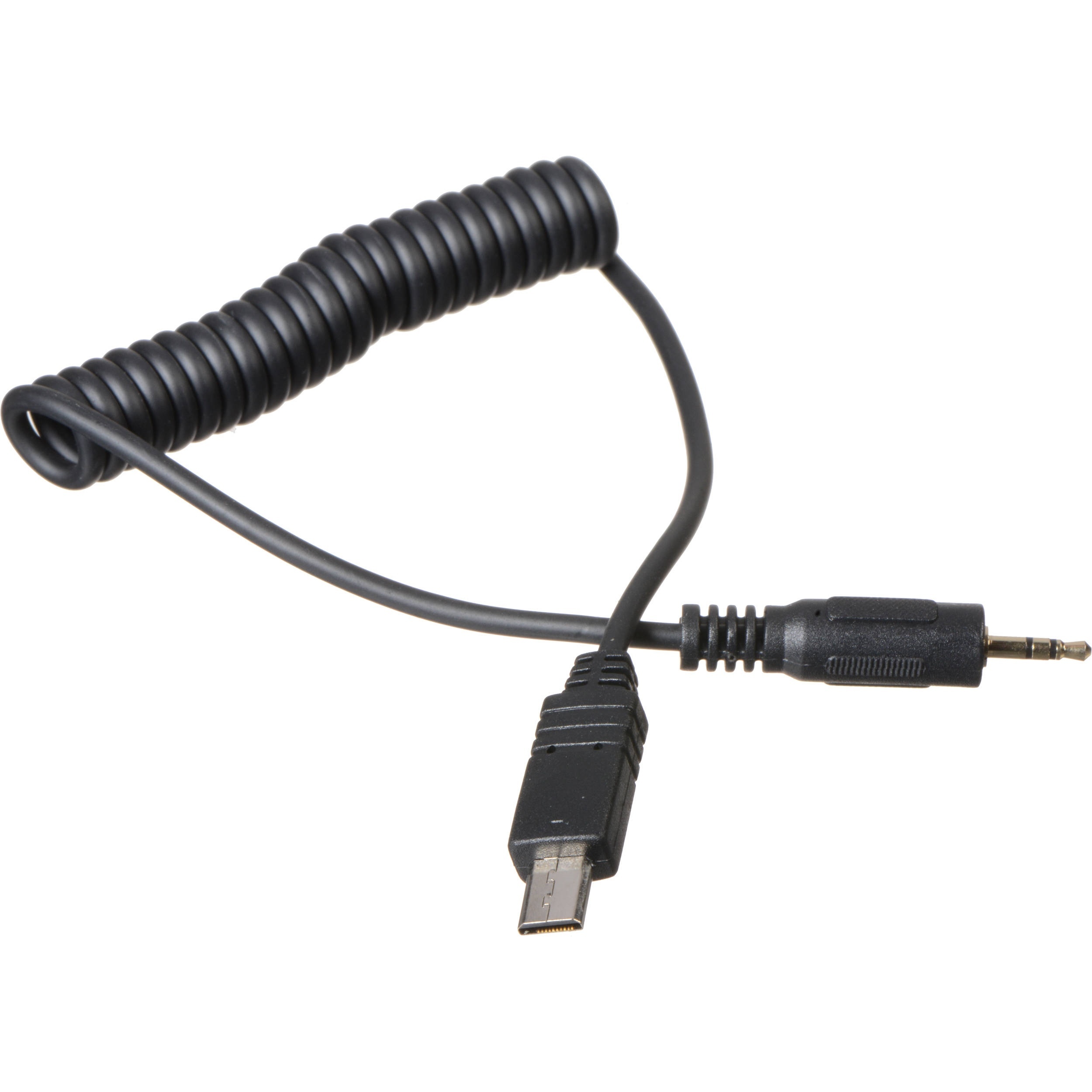

With the separately available Focus Module, you can control focus at points during your motion. During a pan-and-tilt sliding shot, you can pre-program to live-switch between three targets and adjust focus during movement. The head also has a LANC port which allows you to trigger your camera's shutter with a separately available cable.

The head folds flat, making it easy to store in a production bag. The HeadPLUS PRO also includes an L-bracket with 1/4"-20 mounting screw for your camera, a LINK cable, and width extenders for use with the SliderPLUS PRO legs.

Sturdy Aluminium Design
The HeadPLUS PRO is made with CNC-machined aluminum and can hold an equipment load of up to 9kg/20 lb. It weighs under 8 lb and folds to fit in a bag. It comes with an L-bracket with a 1/4"-20 screw for mounting your camera.

Easy Manual or Auto Operation
The head requires no calibration and operates smoothly and silently. You can either program it for automated motion or operate it manually.

Mounting and Compatibility
The HeadPLUS PRO can be installed on a tripod with a 3/8"-16 mount, or used with the SliderPLUS PRO with Slide Module for sliding shots. It can also be used with the SliderONE PRO, DollyPLUS, and previous generation SliderPLUS and SliderPLUS PRO.

Smartphone App Control
Connect the Edelkrone smartphone app via Bluetooth to control speed and record/repeat motions for time-lapses, visual effects, or other complex shots.

Target Switching

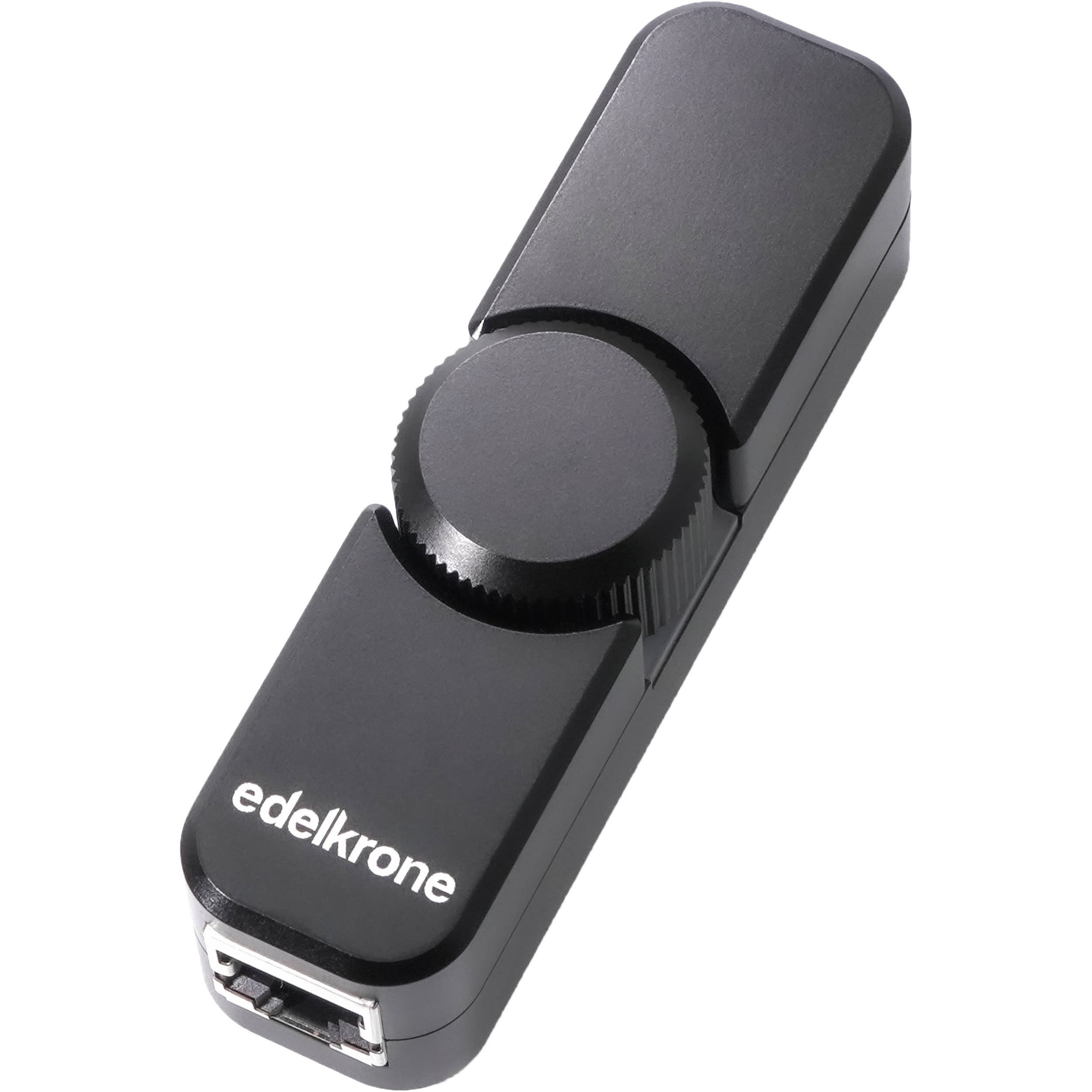

With the optional Focus Module, you can set up to three targets for smooth transitions and keep them each in sharp focus during live motion.

Power

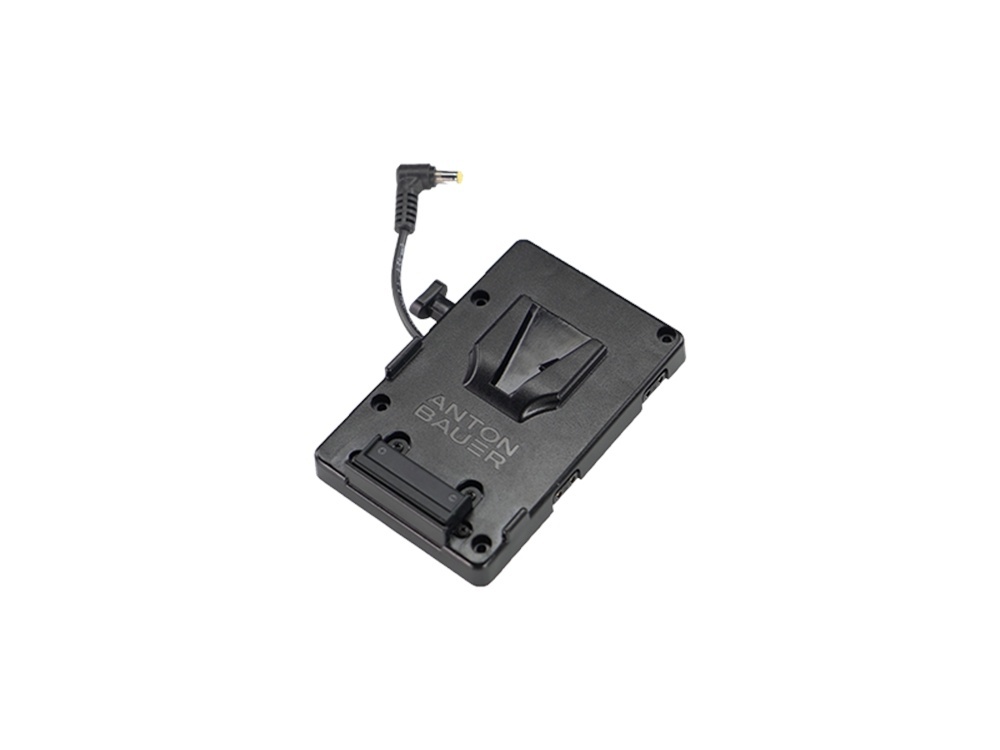

Power with an AC adapter or Sony L series batteries (plate installed), V-mount battery is separately available. It operates for approximately four hours and shoots 28,800 photos in time-lapse mode on 28.8Wh batteries.

Specifications
Material of Construction CNC-Machined Aluminium and Stainless Steel
Load Capacity 20 lb / 9.1 kg
Mounting Options HeadPLUS: 3/8"-16 Thread on Bottom
L-Bracket: 1/4"-20 Screw
Motor Type 2 x Step Motors with Ultra High-Resolution Encoders
Number of Axes 2, Pan and Tilt
Maximum Speed 360° in 20 Seconds
Wireless Support Bluetooth
App Compatibility iOS 11.0 or Later
Android 5.0 or Later
Power Voltage Input: 100-240 V
Voltage Output: 9.0 V
Current Output: 2.2 A
Polarisation: Positive Centre
AC Adapter: 2.1 mm Barrel Plug Output Connector
Battery plate installed Sony L series (NPF type) . A separate V-Mount mount is available (on request).
Battery Life: 4 Hours Continuous with 28.8 Wh Battery Max.
Time-Lapse Mode: 28,800 Photos on Full Charge
Control Ports LINK Port: LINK, for Connection to Slide Module
Focus Port: LINK, for Focus Module
Laser Port: LINK, for Laser Module
Shutter Control: 2.5 mm LANC
Dimensions HeadPLUS PRO: 17 x 4 x 3" / 43.2 x 10.3 x 7.8 cm
L-Bracket: 6.8 x 5.9 x 3.1" / 17.4 x 15 x 8 cm (Folded)
Weight HeadPLUS PRO: 7.9 lb / 3.6 kg
L-Bracket: 15.8 oz / 450 g
